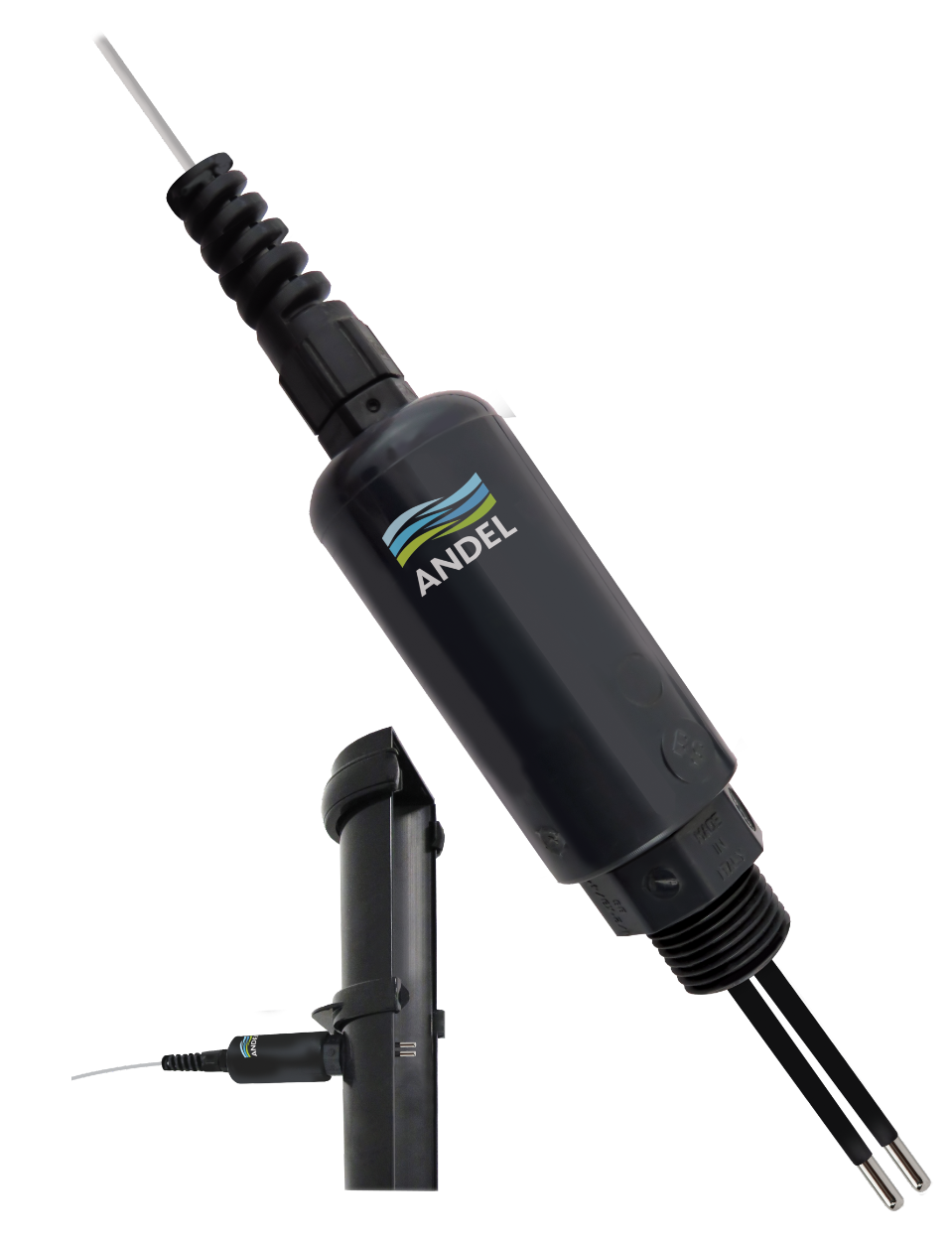

Floodline® Pipe-In-Pipe Water Sensor

Floodline® Pipe-In-Pipe Water Sensor

Fits into sockets at key points along the outer surface of a double-skin pipe or tank

The Floodline® Pipe-in-Pipe Water Sensor is designed to detect the presence or monitor the level of water and other conductive liquids within the interstitial space of double-skin pipes or tanks, or as a high-level tank alarm.

Double-skin pipes and tanks are containment systems that have an outer wall to provide secondary protection against leaks and spills. The space between the inner and outer walls, called interstitial space, allows for the installation of leak detection systems, providing an early warning to prevent damage from water and conductive liquid leaks.

The Floodline® Pipe-in-Pipe Water Sensor plays a vital role across many industries, helping to prevent leaks by either detecting water or monitoring water levels, maintaining the integrity of critical systems.



Request your quote

Floodline® Pipe-In-Pipe Water Sensor

How it works

The sensor design is based around a point sensor that is specifically adapted with a water-tight fitting into a female threaded socket which are provided at strategic points in the outer wall of double-skin pipes or tanks.

Short stainless steel probes extend into the interstitial space created between the inner and outer pipe or tank walls. If water or any conductive liquid escapes into the cavity and comes into contact the sensor probes, the alarm is activated. The sensor can also be used as a high-level tank alarm.

Key features

  • A sensor for water leak detection in double-skin pipes and tanks
  • High-level tank alarm
  • Activates the alarm when the stainless steel probes makes contact with water or any conductive liquid within the interstitial space
  • Multiple re-use with instant return to use following a water leak detection
  • High density plastic body with stainless steel probes
  • Body Length 70mm x Diameter 30mm
  • 300mm stainless steel probes which can be cut to length
  • Available in multiple sizes
10 year warranty
Customers can enjoy the additional comfort of a 10-year warranty on all Floodline® leak detection products when subscribed to the Andel Service and Maintenance Plan. Please ask for details.
More

Downloads

View all downloads
Floodline® Pipe-In-Pipe Water Sensor Product Sheet The Floodline® Pipe-in-Pipe Water Sensor is designed for water leak detection in tanks and double-containment cavities in pipes and tanks.
