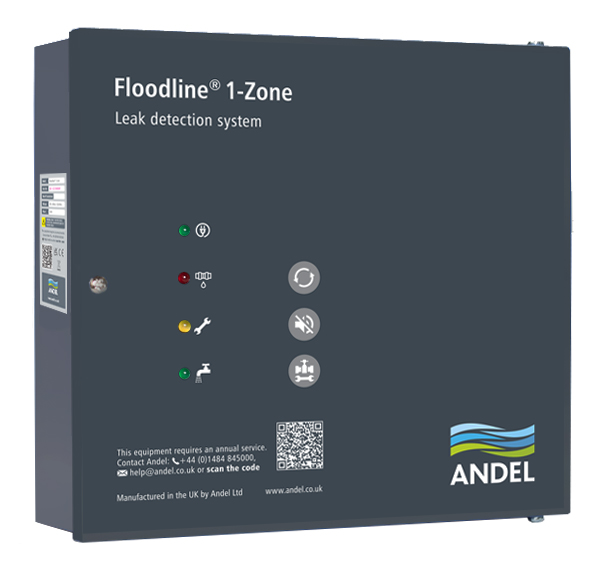

Floodline® 1-Zone Control Panel

Floodline® 1-Zone Control Panel

Monitors the full range of Andel's leak detection sensors including water and oil distance measuring sensors up to 1500 metres via Floodline Ranger®

The 1-Zone Control Panel continuously monitors a single leak detection zone and is designed for wall mounting for ease of access.

A zone can be anything from a single point to multiple water, oil and gas sensors as well as water or oil distance measuring sensor cable, monitoring up to 1500 metres via Floodline Ranger®. The system can also monitor humidity and temperature as required.

A leak detection alarm is indicated by a flashing LED as well as an audible alarm with mute function. An activated alarm is displayed continuously until the problem is corrected and the alarm is reset.

Output relays can connect to BMS and remote alarms and can also drive other devices such as beacons and solenoid or motorised valves to isolate the water, gas or oil supply in the event of a leak detection.

Request your quote

Floodline® 1-Zone Control Panel

Benefits at a glance

  • Monitors the full range of Floodline® leak detection sensors
  • Connects to Floodline Ranger® for distance measuring liquid leak detection
  • Monitors temperature and humidity
  • LEDs provide clear system status and alarm information
  • Audible alarm with mute function
  • Output relays connect to remote alarm and BMS
10 year warranty
Customers can enjoy the additional comfort of a 10-year warranty on all Floodline® leak detection products when subscribed to the Andel Service and Maintenance Plan. Please ask for details.
More

Frequently asked questions


How many detection zones does this panel support? + -

It supports one detection zone.

Can this panel be integrated with other systems? + -

Yes, it features volt-free relay contacts for onward signalling to Building Management Systems (BMS) or other alarm systems.

What types of sensors are compatible with the Floodline 1 Zone Control Panel? + -

It's compatible with all Andel Floodline leak detection sensors, including water, oil, and refrigerant leak detection sensors.

Does the panel indicate the status of the detection circuit? + -

Yes, it includes indicators for fault conditions such as open or short circuits.

Is there an option for a battery backup? + -

Yes, an optional 7-day battery backup is available.

What are the power requirements for the panel? + -

The panel requires a 230 V AC supply.

What is the typical alarm output from the panel? + -

It provides volt-free alarm relay output.

What is the casing material and IP rating of the panel? + -

It is housed in a steel enclosure with an IP54 rating.
