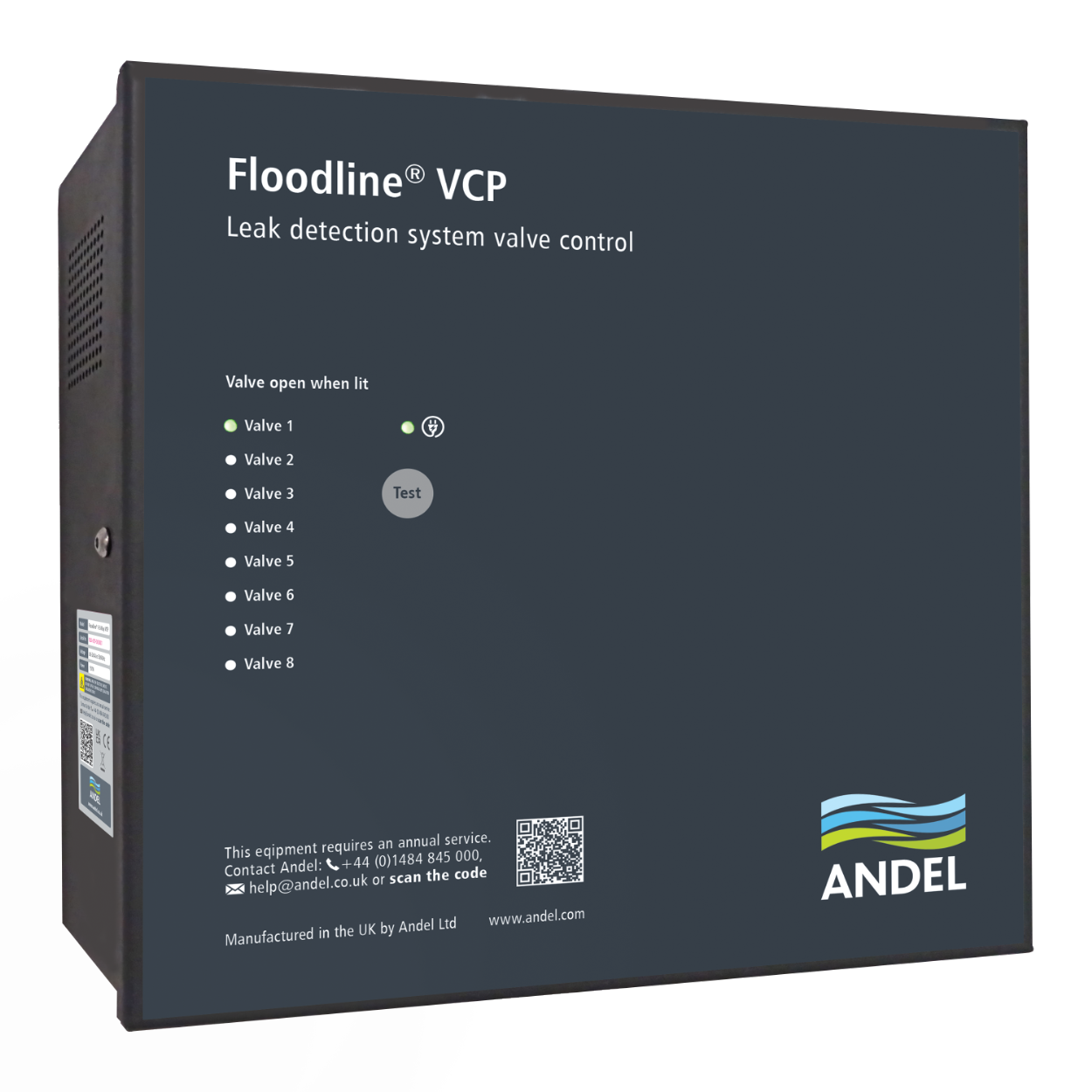

Floodline® 1-8 Way Valve Control Panel (VCP)

Floodline® 1-8 Way Valve Control Panel (VCP)

Controls the operation of up to eight solenoid or energy-saving motorised valves to isolate water, oil or gas supply if an alarm is triggered.

Installing valve shut-off systems is often a key part of an effective Floodline® installation. The Floodline® 1-8 Way Valve Control Panel (VCP) monitors alarm relays in a Floodline® control panel and associated sensors.

Floodline® 1–8 Way VCP monitors alarm relays in a Floodline® control panel and automatically operates solenoid or energy-saving motorised valves to isolate a water, oil or gas source when a leak is detected.
Available in eight configuration options, the 1–8 Way VCP can manage from one to eight 24VDC, 16W valves.

Floodline® VCP has illuminated LED valve, power and alarm indicators, fuse protection for each power output, output for both normally open and normally closed valves and a valve test button for testing the operation of the valves.



Request your quote

Floodline® 1-8 Way Valve Control Panel (VCP)

Benefits at a glance

  • Monitors alarm relays in a Floodline® control panel
  • Controls operation of up to eight 24VDC 16W solenoid or energy-saving motorised valves
  • Available in eight configuration options
  • Illuminated valve, power and alarm LED indicators
  • Fuse protection for each power output
  • Output for both normally open and normally closed valves
  • Valve test button for easy testing of valves
  • 10-year warranty

Independent zone management

Each zone is electrically isolated. If an alarm is triggered in any zone, unaffected zones continue normal operation with continuous, uninterrupted leak detection and monitoring – ensuring system resilience and minimal disruption.



Smart automatic valve control

The Floodline® 1-8 Way VCP automatically operates solenoid or energy-saving motorised valves to isolate a water, oil or gas source the moment a leak is detected – a smart, automatic safeguard that prevents damage, disruption and costly downtime.



10 year warranty
Customers can enjoy the additional comfort of a 10-year warranty on all Floodline® leak detection products when subscribed to the Andel Service and Maintenance Plan. Please ask for details.
More

Downloads

View all downloads
Floodline® 1-8 Way Valve Control Panel The Floodline® 1-8 Way Valve Contol Panel (VCP) can automatically isolate the water, gas and oil supply to any number of zones if an alarm is triggered.
