Andel Floodline® HLD Control Panel

The control panel that takes leak detection to a new level

Next generation, multi-detector, hybrid leak detection monitoring system

Unique, state-of-the-art leak detection and environmental monitoring system, the HLD control panel is a true hybrid, able to accept input alarms and provide detailed data from water, gas and oil leak detection sensors as well as temperature and humidity monitoring sensors simultaneously.

Winner of Made in Sheffield Manufacturing Innovation Award 2022

Request your quote

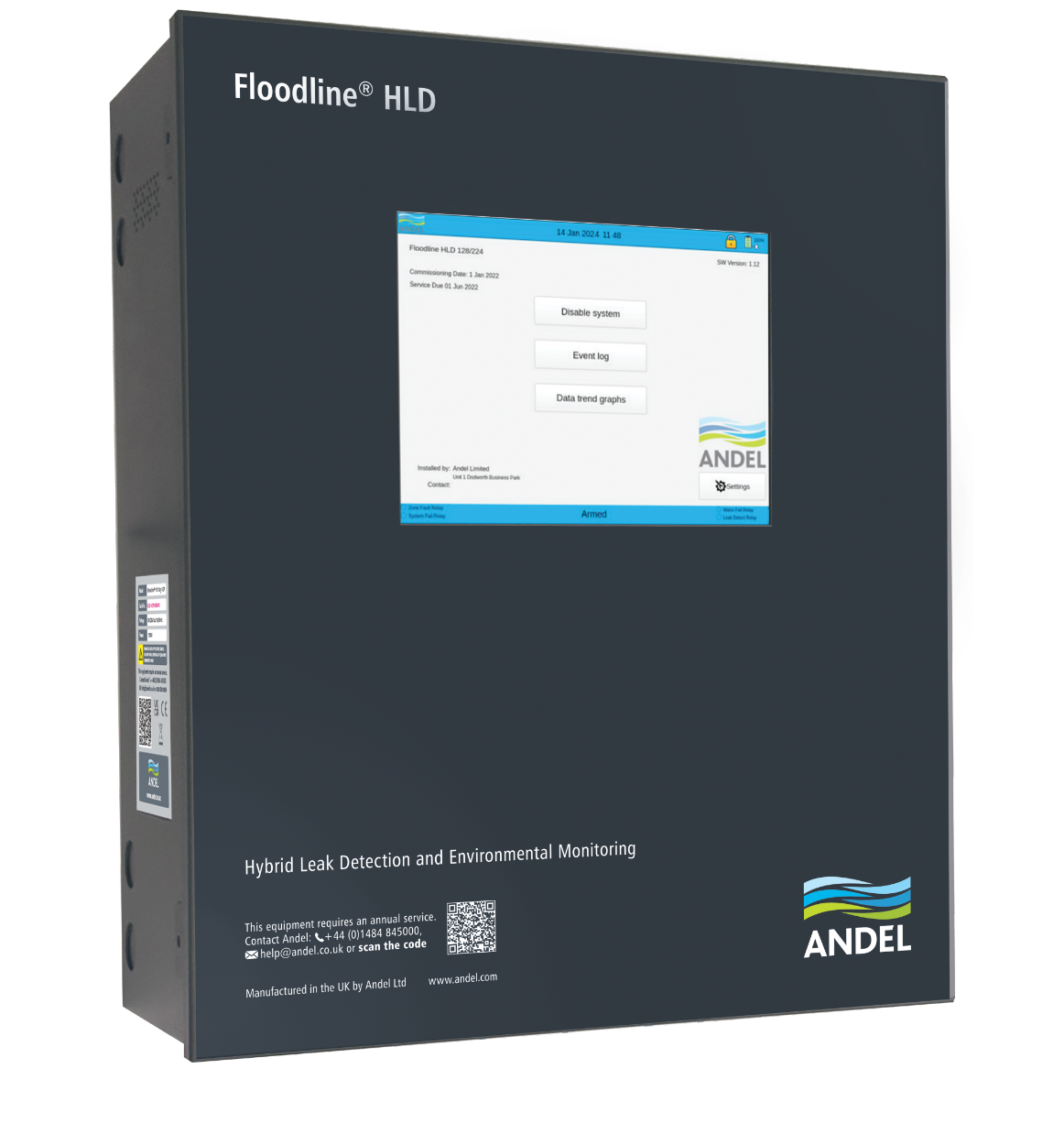

Andel Floodline® HLD Control Panel

Floodline® HLD can monitor from 4 to 128 traditional zones using resistance-based sensors and from 8 to 224 zones using Modbus-enabled sensors – a total zone capacity of 352 zones. A Floodline® zone can be anything from a single point to multiple sensors for all types of leak detection and temperature and humidity monitoring as well as liquid leak detection distance measuring up to 1500 metres.

Medium to large installations

Floodline® HLD is engineered for medium to large sites, operating an entire network of leak detection cables and sensors from a single, wall-mounted control panel. It combines advanced technology with enhanced functionality for both installers and end users.

A truly multifunctional and customisable leak detection control panel

The large 8-inch (203mm) LED touchscreen provides a complete system overview, including embedded building maps that pinpoint the exact location and type of any alarm activation.

Because each zone is electrically isolated, an alarm or maintenance activity in one zone does not affect monitoring in the others, ensuring uninterrupted protection.

Zone sensitivity

Sensitivity settings for each zone can be fine-tuned via the touchscreen to suit the environment and operating conditions, greatly reducing the risk of false alarms.

The integrated temperature and humidity sensor can be configured with up to four independent alarm thresholds.

Customers can enjoy the additional comfort of a 10-year warranty on all Floodline® leak detection products when subscribed to the Andel Service and Maintenance Plan. Please ask for details.

Monitors water, oil, gas, temperature and humidity sensors simultaneously
Monitors from 4 to 128 zones using resistance-based sensors
Plus from 8 to 224 zones using Modbus-enabled sensors
For 4/8/16 zone panels, 8/16/32 individual zone output relays provided
For 32 zone panel and above minimus 32 individual zone output relays are available with optional remote relay panel/s
Events Data Logging – last 1000 alarm/system events with date and time
Traditional Zone Data Logging – the panel also logs the resistance of each zone input every 10 minutes on a 7-day FIFO basis, shown graphically on the scree
If an alarm is triggered, HLD automatically activates solenoid valves to isolate water, oil or gas supply as required, in any single or group of zones
Allows the sensitivity of each zone to be adjusted, via the touchscreen set-up, to take into account the environment and working conditions for that zone, significantly reducing the risk of false alarms
In the event of an alarm activation or maintenance work, unaffected will continue to provide full leak detection monitoring
Full hybrid, simultaneous monitoring of traditional zonal and distance measuring leak detection systems
Accepts volt-free contact input for connection to third-party sensors and the option to monitor other remote site activities such as oil storage data.
Digital panel with large 8-inch (203mm) LED touchscreen
Embedded map of monitored areas pinpoints location and nature of any alarm activation
Modbus or volt-free contact connection to BMS
Onward communication capabilities include Modbus, Ethernet, email and SMS
CE/UKCA certified – the panel is CE/UKCA marked
10-year warranty

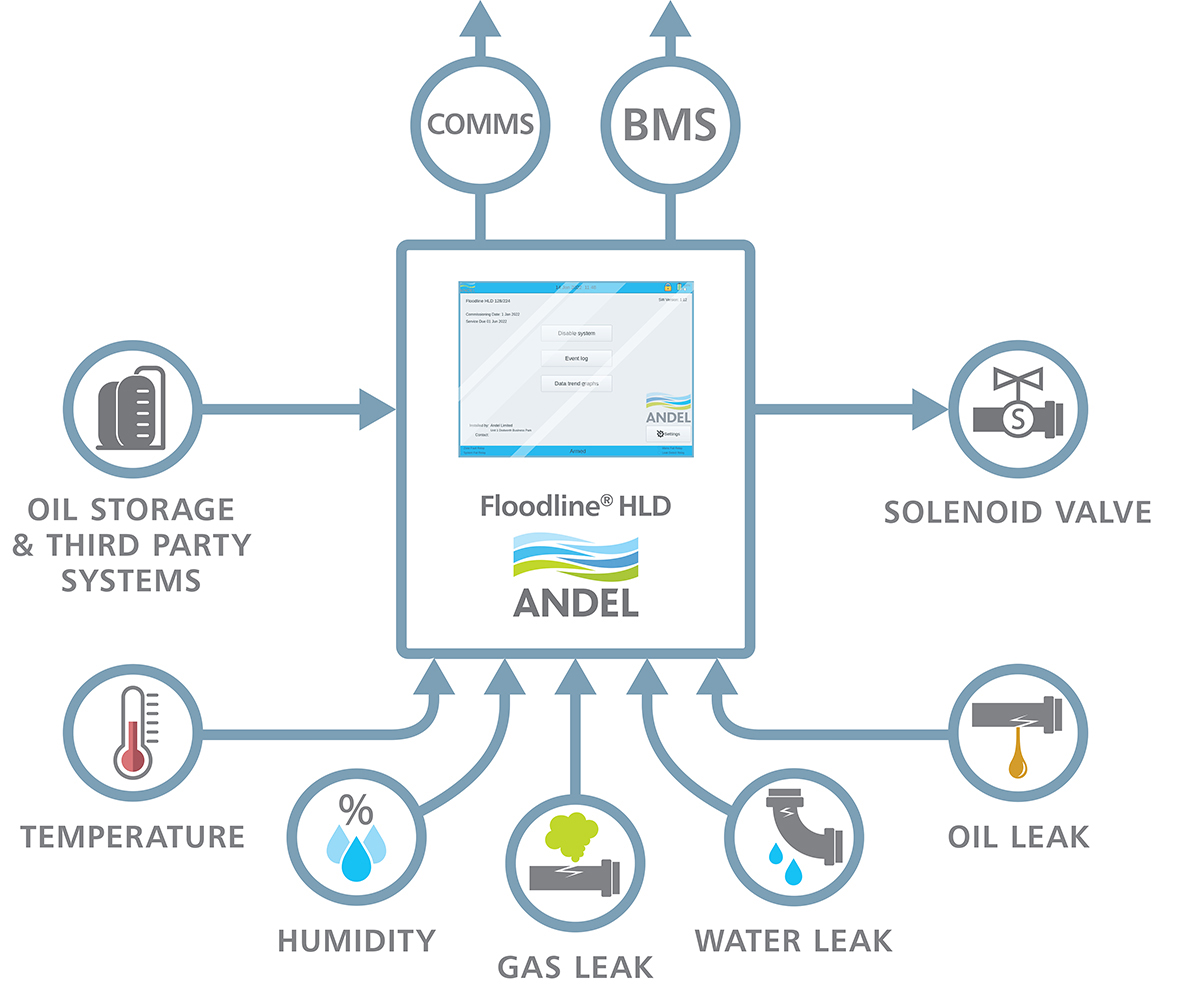

A hybrid system

HLD provides complete BMS connectivity via Modbus and onward communication capabilities include Modbus, Ethernet, email and SMS.

The system provides simultaneous monitoring and detailed information on the large display screen for water, oil, gas, temperature and humidity sensors. HLD accepts volt-free contact input for connection to third-party sensors and has the capability to monitor other remote site activities such as fuel and oil storage data.

Large 8-inch (203mm) LED touchscreen provides full overview of the system

Home screen

Zone map screen

Alarm screen

Settings menu

Data trend screen

Alarm event log screen

Frequently asked questions

What is the Floodline® HLD Control Panel? + -

It’s a next-generation, hybrid leak detection and environmental monitoring system, designed to protect buildings and critical infrastructure against water, oil, gas, humidity, and temperature risks.

How many zones can it monitor? + -

The panel supports 4-128 traditional zones plus 8-224 Modbus zones – giving a maximum capacity of 352 zones.

Can it pinpoint the location of a leak? + -

Yes. Zonal systems identify the location of the leak, distance-measuring cables allow leaks to be identified up to 1,500 metres from the panel, with +/- 1 metre locations – all shown on the integrated touchscreen map.

What type of display does it have? + -

The system features a large 8-inch colour LED touchscreen, providing real-time system status and an embedded map for clear, accurate alarm location.

Can it integrate with building management systems (BMS)? + -

Yes. It offers Modbus, Ethernet, SMS, email alerts, and volt-free outputs, making it fully compatible with most BMS platforms.

Does it automatically shut off supplies in the event of a leak? + -

The panel can control shut-off valves, such as motorised or solenoid, to automatically isolate water, oil, or gas in affected zones, preventing damage or escalation.

How are false alarms managed? + -

Each zone’s sensitivity can be adjusted via the touchscreen to suit site conditions, significantly reducing the chance of nuisance and unnecessary alarm activations.

What warranty does it come with? + -

With an Andel service and maintenance plan, the Floodline® HLD Control Panel is backed by a 10-year warranty, ensuring long-term reliability.
