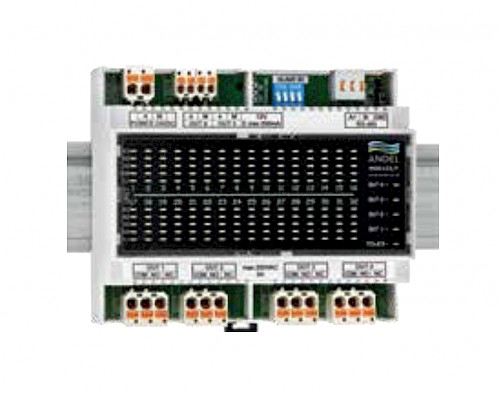

Floodline® MDD-L32/T Visual Indicator

Floodline® MDD-L32/T Visual Indicator

Provides monitoring of up to 32 detectors within a Floodline® digital gas detection system

Floodline® MDD-L32/T Visual Indicator provides monitoring of up to 32 detectors operating in a digital gas detection system as well as controlling other executive and signalling devices through contact outputs. Up to 7 Visual Indicators can be combined.

Communication with the MDD-256/T master control module is via industry standard RS485, in accordance with the Modbus RTU protocol.

The unit has a simple, fast display of up to 32 detectors in the digital gas detection system. The display indicates power supply, alarm and state of emergency for each individual detector through 32 sets of 5 LED lamps as well as contact states of control outputs OUT1, OUT2, OUT3 and OUT4.

Request your quote

Floodline® MDD-L32/T Visual Indicator

12V alarm outputs control acoustic and optical sirens. There are four standard modes of operation divided over zones.

Contact outputs can operate fans, motors, contactors, information boards or connect with building and plant automation. The system can be configured to individual customer requirements.

The system has a very simple, intuitive launch with standardised properties and settings. The housing is adapted for mounting on TS35 rail in a standard electrical switchboard. Configuration of the module settings can be set up manually through the MDD-256/T master control module or alternatively with special configuration software on a PC.

Key features

  • Provides monitoring of up to 32 detectors within a digital gas detection system
  • Up to 7 Visual Indicators can be combined
  • Controls other executive and signalling devices through contact outputs
  • Communicates with the MDD-256/T master control module via industry standard RS485
  • Simple, fast display for power supply, alarm, detectors and control outputs
  • Control output can operate fans, motors, contactors, information boards and plant automation
  • Simple system launch with standard settings
  • Can be configured to individual customer requirements
  • Housing adapted for mounting on TS35 rail in standard electrical switchboard
10 year warranty
Customers can enjoy the additional comfort of a 10-year warranty on all Floodline® leak detection products when subscribed to the Andel Service and Maintenance Plan. Please ask for details.
More

Downloads

View all downloads
Floodline® MDD-L32/T Visual Indicator Product Sheet Floodline® MDD-L32/T Visual Indicator provides monitoring of up to 32 detectors operating in a digital gas detection system as well as controlling other executive and signalling devices through contact outputs.
