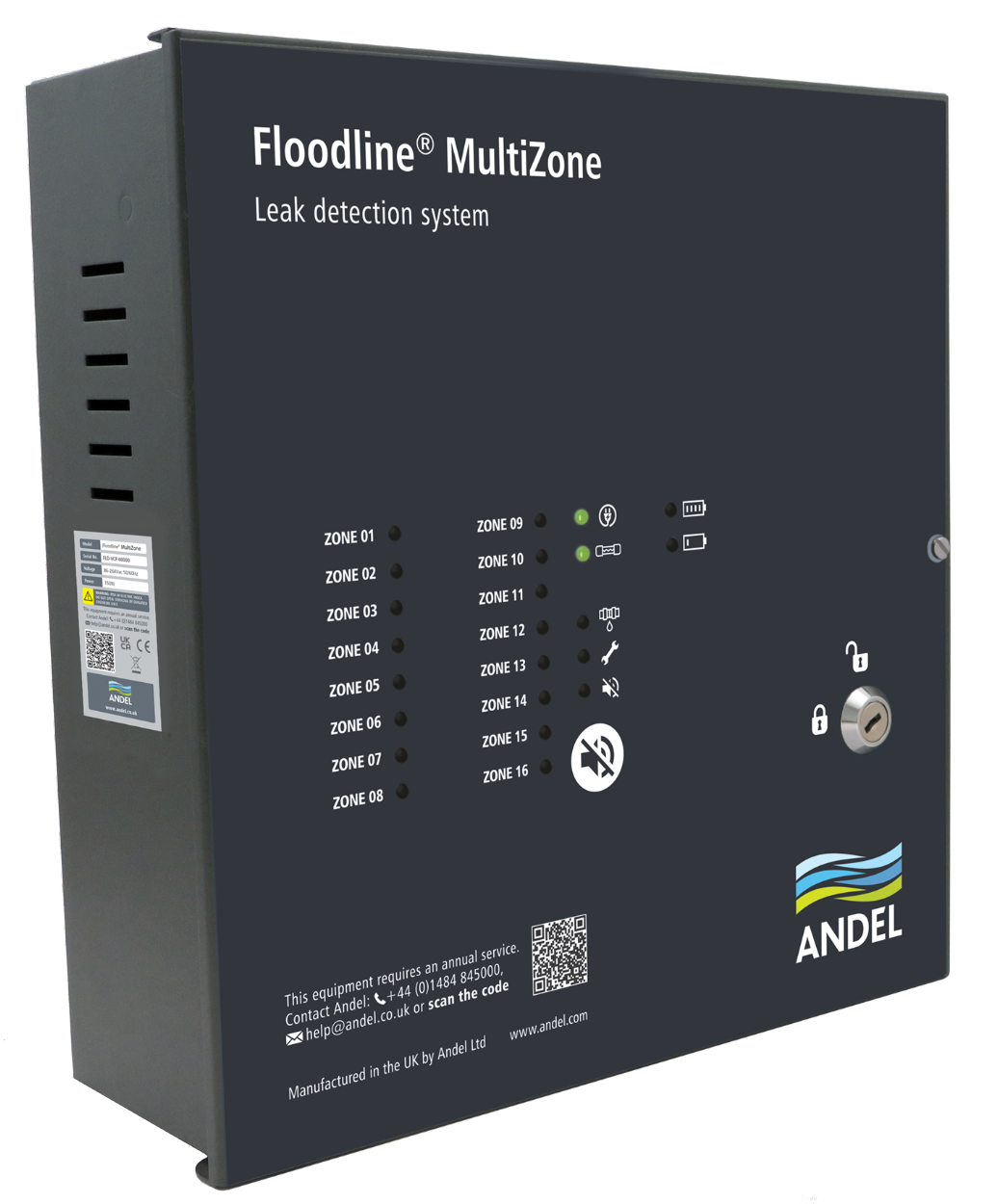

Floodline® MultiZone Control Panel

A multifunctional and customisable water, oil and gas leak detection system

The Floodline® MultiZone Control Panel is a versatile and high‑performance leak detection solution engineered by Andel to cater to diverse leak monitoring demands across water, oil, and gas systems.

Available in 4, 8, and 16‑zone configurations, this wall‑mounted panel ensures continuous, reliable detection across multiple zones with enhanced user and installer experience.

The control panel can continuously monitor a network of multiple leak detection zones. With updated technology and enhanced installer and end-user functionality, MultiZone is a truly multi-functional and customisable control panel.

A zone can be anything from a single point to multiple water, oil and gas sensors and water and oil distance measuring sensors up to 1500 metres via Floodline Ranger®. The whole network is continually monitored for leaks and can also monitor humidity and temperature in any zone as required.

Zones are isolated from each other and individually displayed – so the system can accept and report any number of simultaneous or consecutive zone alarms delivering true multiple leak reporting. If an alarm is triggered in any zone, unaffected zones continue to provide full leak detection monitoring.

Request your quote

Floodline® MultiZone Control Panel

Benefits at a glance

Multi-zone monitoring for 4-zone, 8-zone and 16-zone options
Effortlessly integrates with all Floodline® sensors including point sensors, distance‑measuring systems via Floodline Ranger® up to 1500  metres, as well as humidity and temperature sensors
Features flashing LEDs and an audible alarm (with mute), ensuring clear and immediate alert visibility across individual zone activations
Zones operate independently – an alarm in one zone does not interrupt monitoring functionality in remaining zones
Audible alarm with mute function
Equipped with relay outputs to interface with beacon alarms, remote systems, solenoid and motorised valves, BMS, or remote alarm systems for expanded automation and safety
Compact Build – measures 292 mm height × 285 mm width × 90 mm depth, ideal for convenient wall mounting
10-year warranty when enrolled in Andel’s Service & Maintenance Plan

Why Choose Floodline® Multi-Zone?

Enhanced Reliability: Zone independence ensures no single leak event compromises the rest of the monitoring system.
User-Friendly Interface: Clear visual and audible alerts make initial fault detection swift and intuitive.
Seamless Integration: Relay outputs simplify integration with existing BMS or automated shut-off systems.
Scalability: Flexible zone options (4/8/16), paired with Ranger® distance measuring sensor capabilities, allow for seamless expansion of your monitoring footprint.

Customers can enjoy the additional comfort of a 10-year warranty on all Floodline® leak detection products when subscribed to the Andel Service and Maintenance Plan. Please ask for details.

Frequently asked questions

How many zones does the Floodline® MultiZone Control Panel support? + -

The system is available in configurable variants supporting 4, 8, or 16 zones of leak detection, offering flexibility for a range of installation sizes and monitoring needs

What types of leaks or environmental factors can each zone monitor? + -

Each zone can incorporate water, oil, or gas sensors, and additionally support temperature and humidity monitoring. Zones may also use distance-measuring leak detection cables via the Floodline Ranger® system, covering up to 1,500 metres per network

If one zone triggers an alarm, how does it affect the rest of the system? + -

Zones are electrically isolated and individually displayed. This ensures that if one zone triggers an alarm, all unaffected zones continue normal monitoring, and true multi-zone event reporting remains intact

How are alarms indicated and managed on the control panel? + -

Alarms are clearly communicated via flashing LEDs and an audible alert, which includes a mute function. Notifications remain displayed until the issue is resolved and the system is reset

Can the panel connect to external systems like BMS or shut-off devices? + -

Yes. The panel includes relay outputs — with volt-free contacts – that can integrate with remote alarms, BMS, beacons, or control peripherals like solenoid and motorised valves to isolate supply feeds during leak emergencies

What are the power and installation specifications of the panel? + -

The control panel uses 110/230 VAC mains power, typically consuming around 25W. It also includes support for 12 VDC internal power, with battery backup in some variants. The dimensions for the 4, 8, and 16‑zone panel are 292 mm (H) × 285 mm (W) × 90 mm (D) and it is wall or surface-mountable

What additional monitoring capabilities does the panel support? + -

Beyond leak detection, the system can monitor system faults (e.g., sensor or cable faults), power status (e.g., low battery, mains failure), and provides status indicators for power and fault conditions

Is there a warranty available for the Floodline® MultiZone Control Panel? + -

Yes. When you subscribe to Andel’s Service & Maintenance Plan, Floodline® products – including the MultiZone Control Panel are covered by a 10-year warranty
