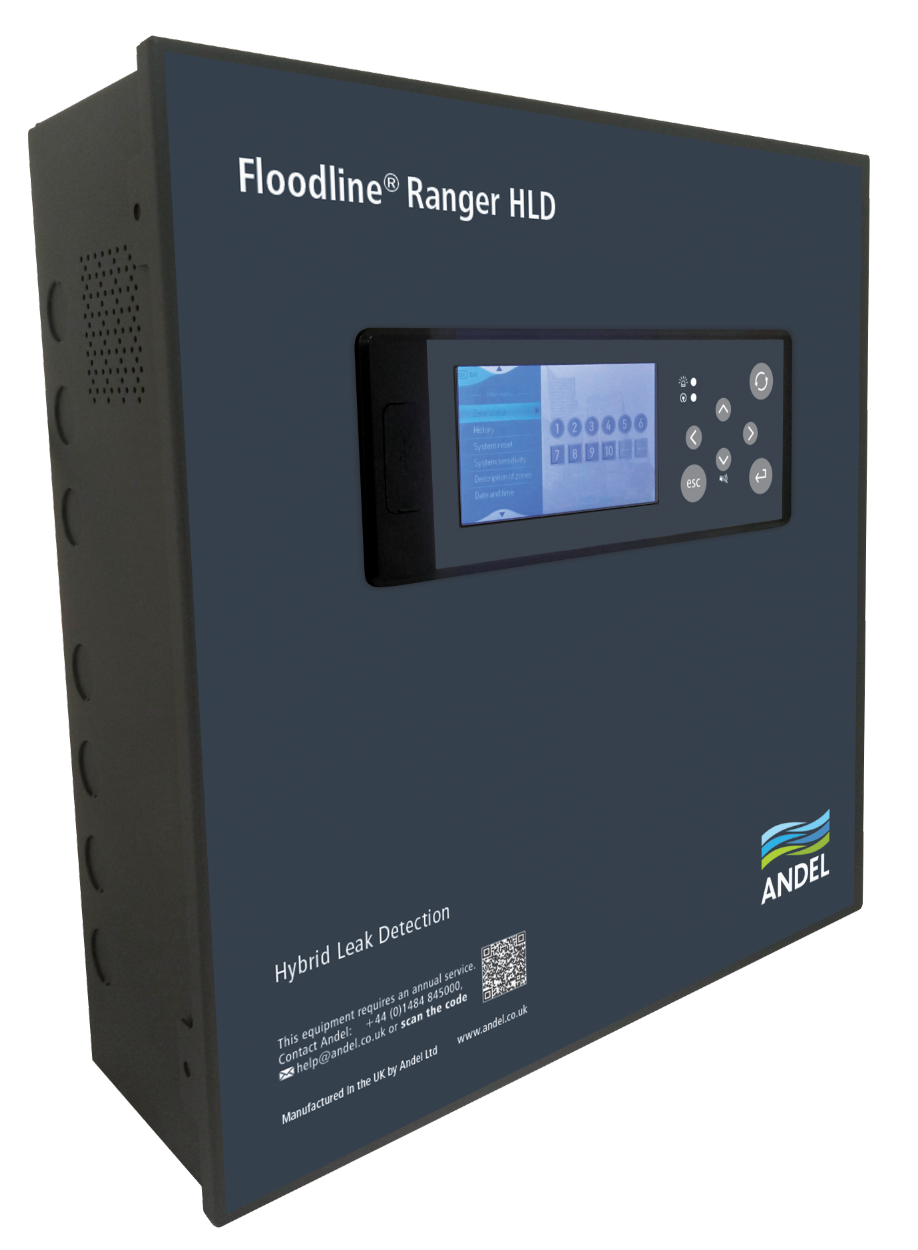

Floodline Ranger® HLD

Floodline Ranger® HLD

State-of-the-art, hybrid leak detection and environmental monitoring system

Designed for medium-size installations up to 24 zones or 16 distance measuring cables – or a combination of both.

The panel is a true hybrid that is able to accept input alarms from all Floodline sensors as well third-party sensors. Ranger® HLD allows the sensitivity of each zone to be adjusted to suit the environment and working conditions for that zone, significantly reducing the risk of false alarms.

Request your quote

Floodline Ranger® HLD

Monitoring configuration

Floodline Ranger® HLD has 4 input slots. Each input slot accepts a zone card with 6 zonal inputs OR a distance measuring card with 4 inputs.

With Andel’s Floodline system, a zone can also be a distance measuring cable. Floodline distance measuring cables can pinpoint a leak to within one metre. Output relays can be also be assigned to certain lengths of cable. For example: in a 200m run around an office, a relay can be assigned to a valve to shut off the water supply at a tea point between 50m and 55m, if a leak is detected.

10 year warranty
Customers can enjoy the additional comfort of a 10-year warranty on all Floodline® leak detection products when subscribed to the Andel Service and Maintenance Plan. Please ask for details.
More

Benefits at a glane

  • Easy-to-use, push button control panel with integrated LCD screen
  • Full hybrid simultaneous monitoring of zonal and distance measuring leak detection sensors
  • Monitors full range of Floodline water, oil, gas, temperature and humidity sensors as well as third-party sensors
  • Can be configured for 6, 12, 18, 24 zones or 4, 8, 12, 16 distance measuring cables (or a combination)
  • A Floodline zone can also be a distance measuring cable
  • Adjustable zone sensitivity
