ReBund®

ReBund®

Environmentally-friendly, cost-effective, retrofittable, modular bund/secondary containment system

Regulations state that above-ground oil storage tanks must have secondary containment. Site operators have a duty of care to prevent hydrocarbon leaks from equipment such as transformers and fuel storage tanks, as well as other contaminants such as chemicals, fertiliser and milk, from entering the ground and polluting the environment.

Andel's ReBund® is an environmentally friendly, modular, low-cost containment system giving long-term protection to oil storage facilities, generators, transformers or any other plant.

Robust, cost-effective and easy to install, ReBund® is primarily constructed from nonporous, durable, 100% post-industrial recycled plastic waste that would otherwise go to landfill. ReBund® is designed for easy on-site assembly for both new build and retrofit installations.



Request your quote

ReBund®

Designed for easy transportation and quick on-site assembly

Installation is easy with no requirement for major plant equipment and no need to suspend core site operations during installation.

ReBund® is a modular system designed for easy transportation and can be quickly assembled on site by a team of two people with minimal ground disturbance.

Wall section panels and posts are installed like standard garden fencing and key base slabs are mounted on beams onto a prepared surface like laying flagstones. All internal surfaces are sealed with Andel quick-drying Cold Fusion Liquid Membrane for guaranteed 100% liquid retention.

Benefits at a glance

  • Modular design means its easy to transport and quick to install
  • No need for major plant equipment, can be quickly assembled on site by a team of two
  • 20-year warranty at no extra cost
  • Minimal ground penetration
  • Ideal for new build and retrofit
  • Low material and maintenance cost compared to traditional, all-concrete bund
  • Lower labour costs – faster installation than traditional methods
  • Reduced carbon footprint compared to all-concrete construction
  • Made from nonporous, durable, 100% post-industrial recycled plastic waste with steel-pipe reinforced posts and panels for added strength
  • Reduces the amount of plastic sent to landfill
  • Can be installed on most surfaces
  • Can be adapted to most shapes and sizes with shape flexibility saving space that could otherwise be wasted
  • Installation sealed with Andel’s quick drying Cold Fusion Liquid Membrane for 100% guaranteed liquid retention
  • Suitable for containing hydrocarbons as well a range of other pollutants
  • Provides four hours fire resistance in tests
Image of rebund_graphics_2-1.png

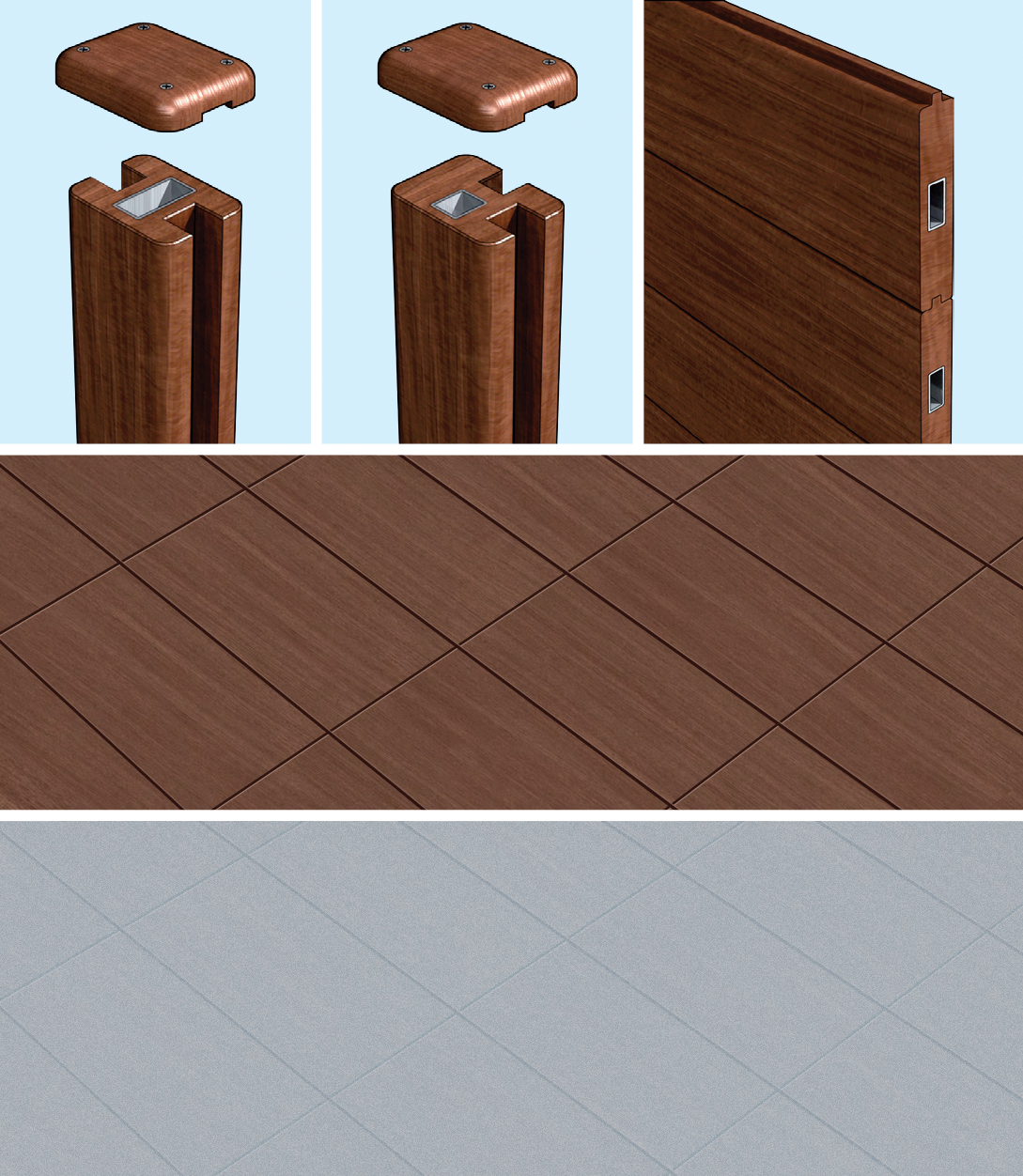

Top row left to right: reinforced middle post with cap, reinforced corner post with cap, reinforced tongue and groove panels.
Middle row: key base slabs.
Lower row: key base slabs treated with liquid membrane for 100% guaranteed liquid retention.

Robust construction

ReBund® is supplied as panels, posts, post caps and key base slabs which are all constructed from 100% recycled plastics consisting of LDPE, HDPE, PP and other waste plastics, which together produce a robust material which is resistant to weather, UV, chemicals, temperature, impact and moisture.

Panels and posts have steel-pipe reinforcement for added strength.

Posts fit into a steel base plate which is bolted deep into a concrete foundation with chemical M16 stainless-steel anchors that bond with the concrete to provide the highest level of structural strength.



Andel Cold Fusion Liquid Membrane

Andel’s fast-cure, waterproof, liquid membrane coating system is applied to the inside of the bund. Using a primer layer, a membrane with fleece layer and a topcoat, the system provides high resistance to the elements. Topcoats can be tailored to resist a range of contaminants.

Andel Cold Fusion Liquid Membrane system provides 100% guaranteed liquid retention.



Reduce your environmental impact

ReBund® panels, posts and base slabs are primarily made from 100% post-industrial recycled plastic waste. ReBund® turns the longevity of plastic, usually a serious environmental problem, into an environmentally-friendly,  cost-effective and robust pollution-prevention solution.

ReBund® not only reduces the amount of plastic sent to landfill, it also reduces your carbon footprint compared to a traditional all-concrete bund construction.

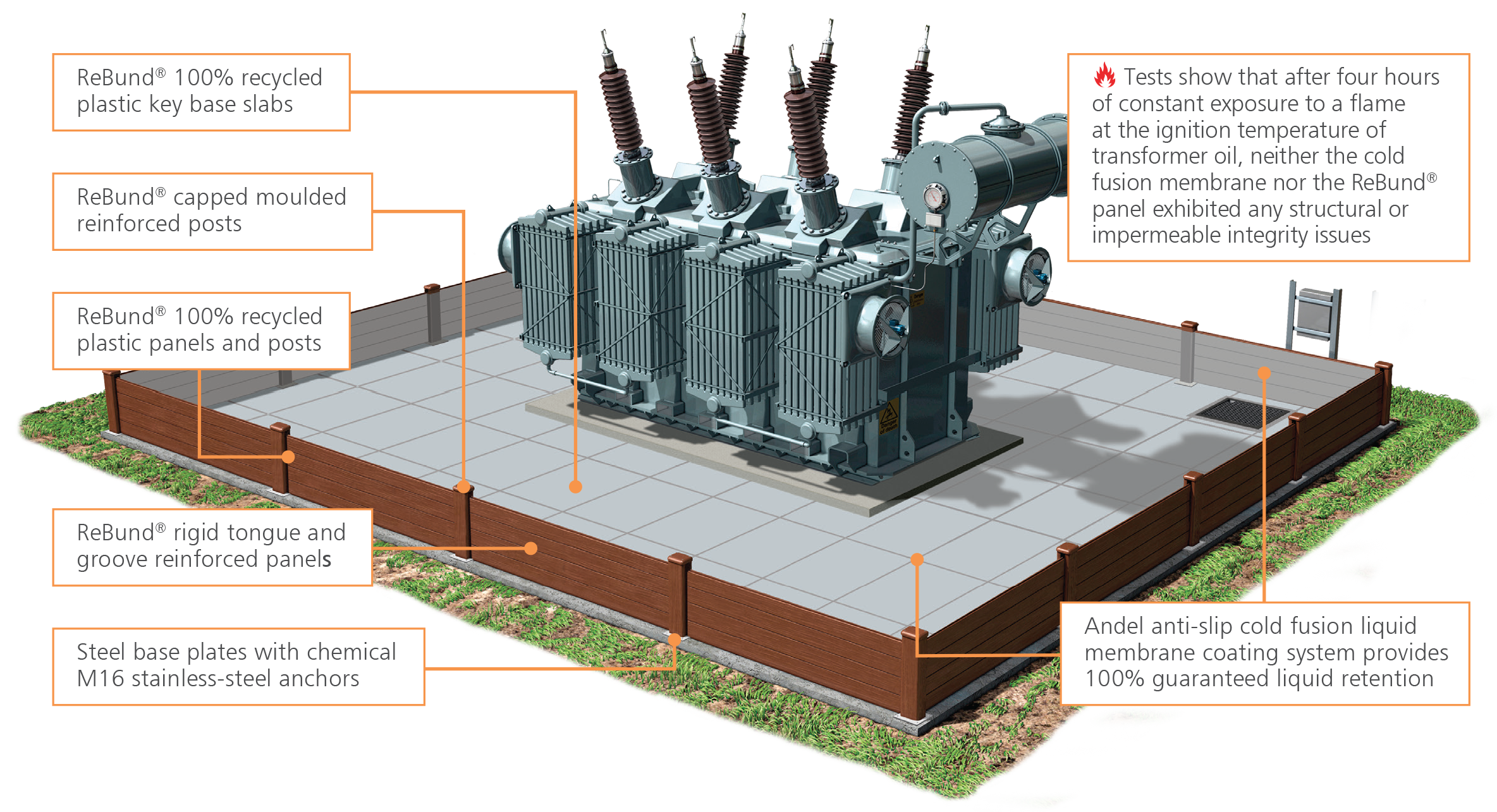

ReBund® can be supplied in two options

  • ReBund® panel and post wall sections sealed to a suitable existing or new concrete base.
  • Panel and post wall sections sealed to Andel’s unique key base slab units.

Both options are sealed with Andel Cold Fusion Liquid Membrane system for guaranteed 100% liquid retention.



Image of labelled_illustration.png
Image of rebund_zig_zag.jpg

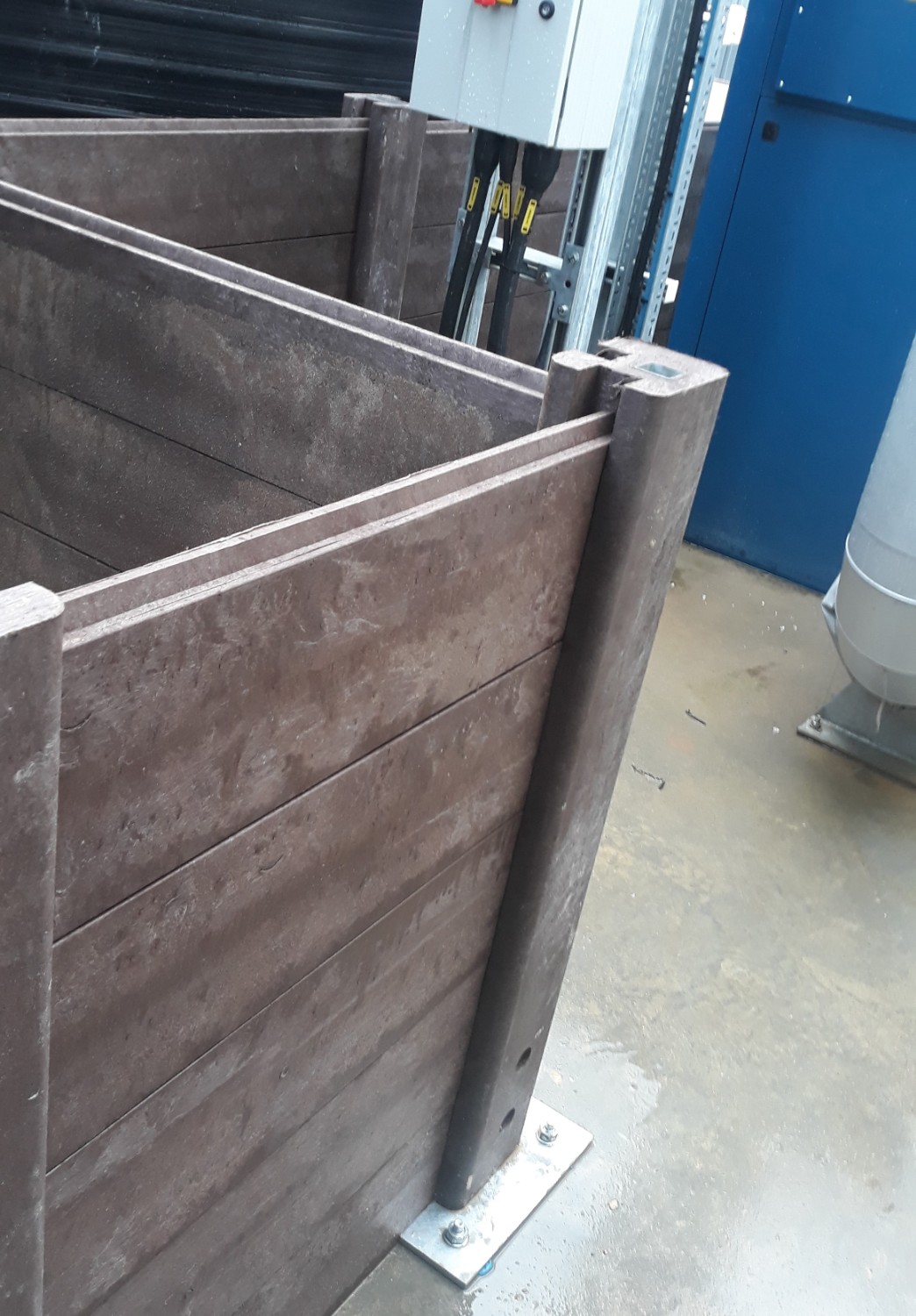

A flexible solution

ReBund® can be installed on most surfaces from soft ground to asphalt to concrete.

The modular nature of the system means that because corner posts can allow for 90 degree turns in either direction, the system can be adapted to fit around irregular shapes, potentially freeing up space which would otherwise be wasted with a traditional concrete bund.

Downloads

View all downloads
ReBund® Product Sheet Environmentally-friendly, robust, cost-effective and easy to install, ReBund® is constructed from 100% post-industrial recycled plastic waste, with steel reinforcement for added strength. ReBund® is designed for easy on-site assembly for both new build and retrofit installations.

Technical data

Component Specification Details
General Description Modular bunding system for secondary containment of oil, fuel, and other pollutants
Construction Material 100% post-consumer recycled plastic waste (LDPE, HDPE, PP, and other waste plastics) with steel reinforcement
Reinforcement Steel-pipe reinforced posts and panels for added strength
Durability Robust, resistant to weather, UV, chemicals, temperature, impact, and moisture
Retention Guaranteed 100% liquid retention when sealed with Andel Cold Fusion Liquid Membrane
Fire Resistance Provides four hours fire resistance in tests
Environmental Impact Reduces plastic waste to landfill, lower carbon footprint compared to all-concrete construction
Installation Type Designed for easy on-site assembly for both new build and retrofit installations
Assembly Modular design for easy transport; can be quickly assembled on site by a team of two people
Ground Disturbance Minimal ground penetration
Foundation Posts fit into a steel base plate bolted deep into a concrete foundation with chemical M16 stainless-steel anchors
Surface Suitability Can be installed on most surfaces
Flexibility Can be adapted to most shapes and sizes, saving space
Warranty 20-year warranty
Cost Effectiveness Lower material and maintenance cost compared to traditional, all-concrete bund; lower labour costs – faster installation
Re-Bund Options Option 1 Panel and post wall sections sealed to a suitable existing or new concrete base
Option 2 Panel and post wall sections sealed to Andel's unique key base slab units
Andel Cold Fusion Liquid Membrane Type Fast-cure, waterproof, liquid membrane coating system
Application Applied to the inside of the bund; primer layer, membrane with fleece layer, and topcoat system
Resistance Provides high resistance to elements; topcoats can be tailored to resist a range of contaminants
Function Ensures 100% guaranteed liquid retention
Components Supplied Panels Tongue and groove, steel-pipe reinforced
Posts Reinforced middle and corner posts with caps, steel-pipe reinforced
Key Base Slabs Mounted on beams onto a prepared surface, can be treated with Andel Cold Fusion Liquid Membrane
