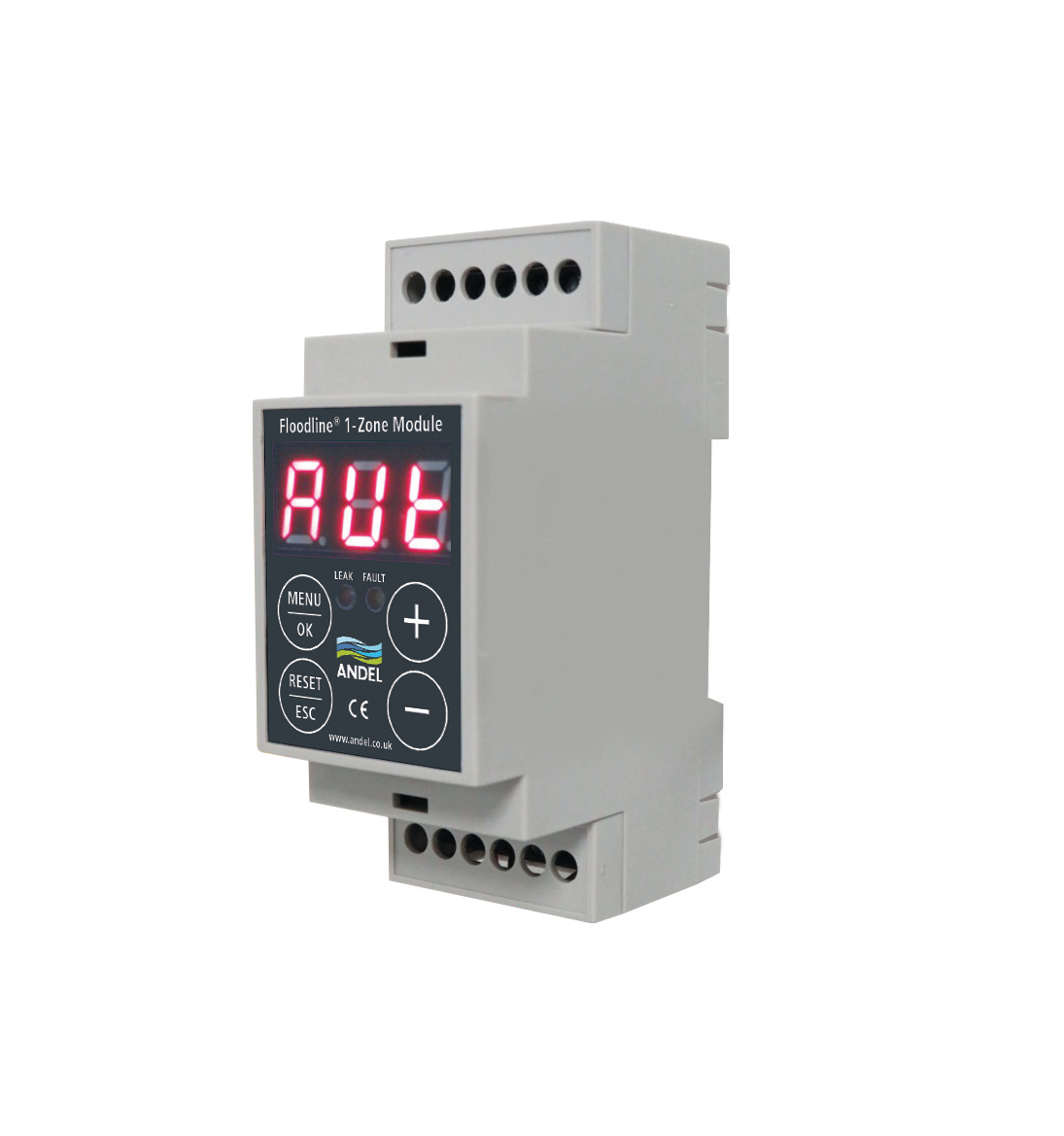

The 1-Zone Module is a self-contained single zone leak detection module specially designed for incorporation into other control/alarm systems, air conditioning units, BMS etc. The module continuously monitors a single leak detection zone.
The 1-Zone Module provides two volt-free contacts for communication with flashing LEDs signalling independently RED for leak detection and YELLOW for system status alarms. All alarms are displayed continuously until corrected and reset.
The module provides variable sensitivity for leak alarm, the ability to read sensor status, manual and automatic reset modes, a history log of the last five alarm events, two volt-free relay outputs and test operation for the volt-free contacts.
The compact module is designed for DIN rail mounting and screw terminals provide connections for leak detection sensors, power input and volt-free contact output.
