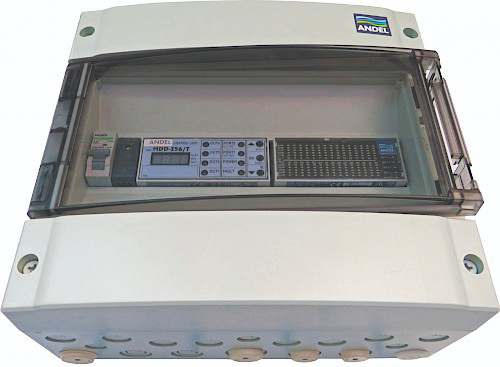

Floodline® MDD-256/T Control Unit

The control unit works with a range of detectors and control modules using RS485

The unit periodically checks detectors in the network for gas leaks, which is when the preset gas concentration levels are exceeded. In the event of a gas leak, the opto-acoustic alarm is activated, output relays become active and any attached signalling devices are activated.

Alarm information is via industry standard RS485.

The unit controls up to 224 detectors and up to 21 control units over a limit of seven zones. Communication with detectors is via RS485, standard galvanically separated. A second RS485 channel allows communication with other external control systems.

View all control and alarm panels Request your quote

The unit is ready to mount on a standard TS35 rail cabinet and requires 24VDC supply. The control unit has an LED indicator and is equipped with a face-mounted keyboard. Configuration of the module settings can be set up manually through the MDD-256/T master control module or alternatively with special configuration software on a PC.

Key features

The control unit oversees the digital gas detection system
Works with a range of detectors and control modules
The unit periodically checks the detectors for leaks
A gas leak detection will trigger an alarm and activate output relays and signalling devices
Alarm information is via RS485
The unit controls up to 224 detectors and up to 21 control units over a limit of seven zones

Customers can enjoy the additional comfort of a 10-year warranty on all Floodline® leak detection products when subscribed to the Andel Service and Maintenance Plan. Please ask for details.
