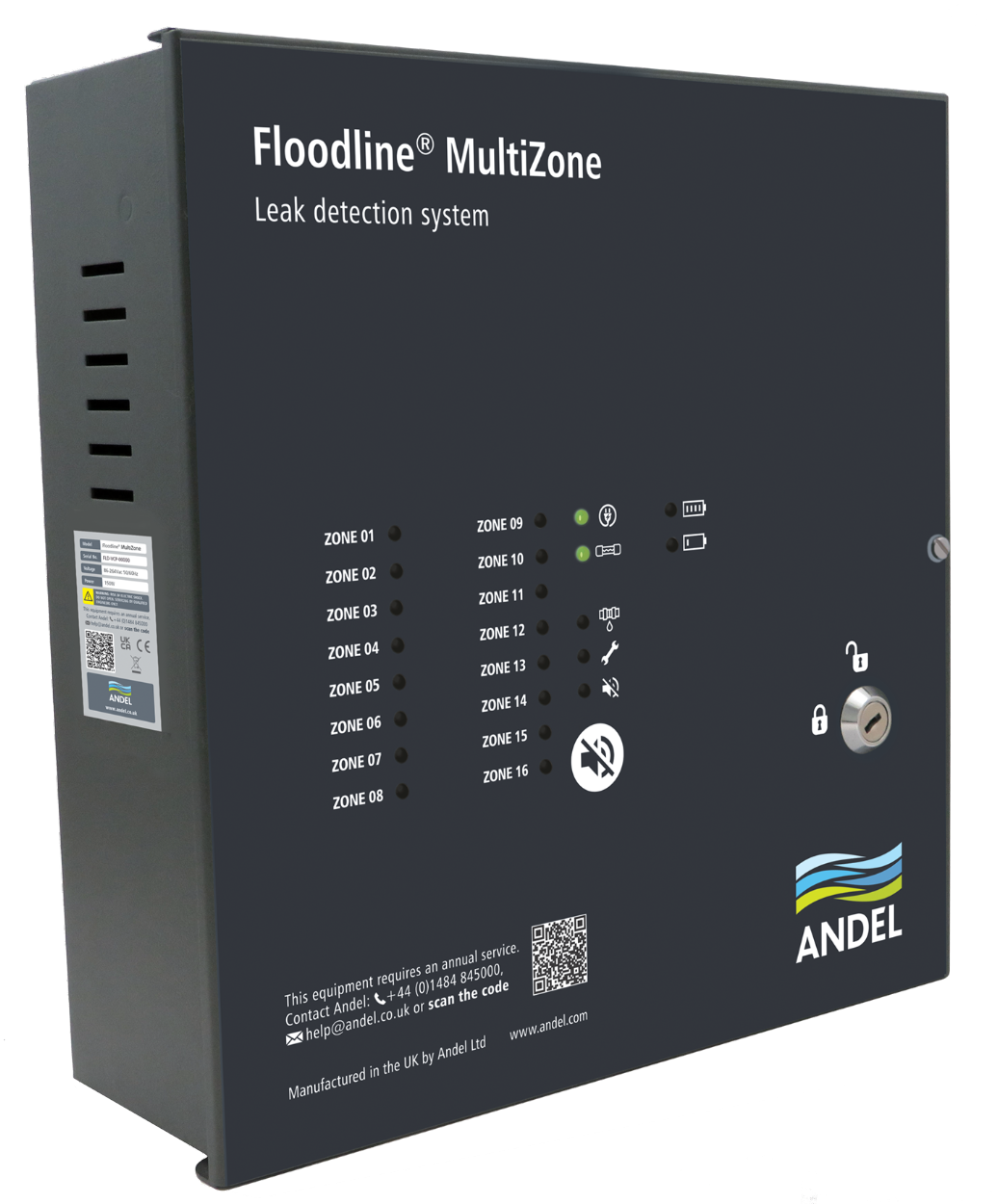

The Multi-Zone control panel is available as 4-zone, 8-zone and 16-zone options designed for wall mounting. The control panel can continuously monitor a network of multiple leak detection zones. With updated technology and enhanced installer and end-user functionality, Multi-Zone is a truly multi-functional and customisable control panel.
A zone can be anything from a single point to multiple water, oil and gas sensors and water and oil distance measuring sensors up to 1500 metres via Floodline Ranger®. The whole network is continually monitored for leaks and can also monitor humidity and temperature in any zone as required.
Zones are isolated from each other and individually displayed – so the system can accept and report any number of simultaneous or consecutive zone alarms delivering true multiple leak reporting. If an alarm is triggered in any zone, unaffected zones continue to provide full leak detection monitoring.
Temperature and humidity sensors can be configured for four separate alarm levels.
A leak detection alarm is indicated by a flashing LED as well as an audible alarm with mute function. All alarms are displayed separately and continuously until corrected and reset.
Output relays provide the ability to drive other devices such as beacons, remote alarms and solenoid valves to isolate water, gas and oil supply in the event of a leak.
